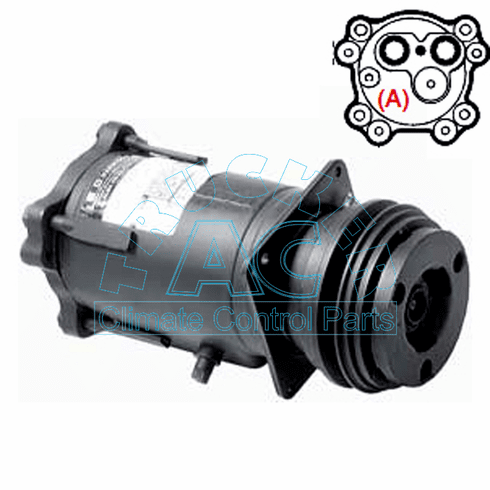

GM - Compressor OEM# 5250A 502-216 512008 20-10838
Specifications
Manufacturer #: 51-86031A
Application: GMC/Off Road/Bus Applications
Description: A6 COMPRESSOR 12V W/PAG OIL
Volts: 12V
Clutch Diameter: 4.87''
No. of Grooves: 1 groove
Belt Type: 1/2'' Belt
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 12.6 cu.in.
Factory Oil Charge: 10 oz oil
Fitting Port Position: Rear
Fitting Style: GM O-ring Pad
Head Type: Superheat switch Port
Wire Type: 2:00 (RH) Plug
Replacement Clutch Assy.: NSS
Model: A6
OEM Number: 1131223,1134243
Oil Type: PAG150
Product Name: Compressor
Refrigerant Type: R12/R134a
Rotation: CW
O-Ring #1: 16-4224
O-Ring #2: 16-4224
Shaft Type: Keyed shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5250A 502-216 502-216A 502-216B 512008 512047 1131223 1134243 20-10838 512126 AC502-216A AC502216A AC502-216B AC502216B AC501-233A AC501233A
