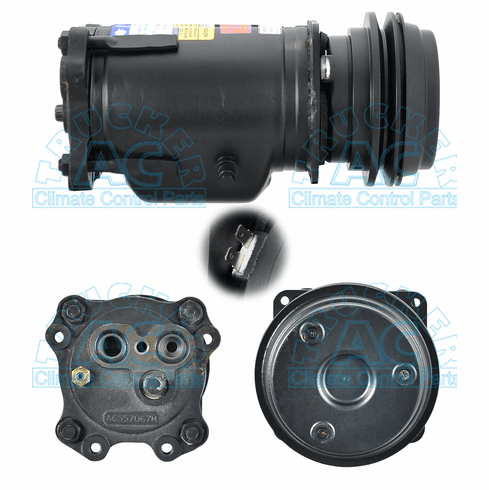

GM Compressor OEM# 1131250
Zoom

GM Compressor OEM# 1131250

Item# 03-1811A
$571.01
Availability: Usually ships the same business day.

ALL MODELS, ALLIS GLEANERS / COMBINES (AGCO), GM A6, All w/A6 comp., w/5-1/2 dia. clutch, new, OEM# 1131250

CASE / IH, ALL MODELS, GM Harrison, All w/A6 comp., w/5-1/2 dia. clutch, new, OEM# 1131250

CATERPILLAR, Frigidaire GM A6, w/5-1/2 dia. Clutch, OEM# 1131250

JOHN DEERE, GM A6 Compressors, All models w/A6 comp. w/5-1/2 dia. Clutch, OEM# AR68802

MASSEY FERGUSON, ALL MODELS, GM A6, w/A6 comp. w/5-1/2 dia. clutch, new, OEM# 530748M91

Specifications

Manufacturer #: 51-86012A

Application: GMC/Off Road/Bus Applications

Description: A6 Comp. w/5.5'' 12v D.C./PAG

Additional Description: sealed HD style

Volts: 12V

Clutch Diameter: 5.5''

No. of Grooves: 1 groove

Belt Type: 1/2'' Belt

No. Comp. Cylinders: 6 cyl

Comp. Displacement (ci): 12.6 cu.in.

Factory Oil Charge: 10 oz oil

Fitting Port Position: Rear

Fitting Style: GM O-ring Pad

Head Type: Superheat switch Port

Wire Type: 10:00 (LH) Plug

Replacement Clutch Assy.: NSS

Model: A6

Mounting Type: Standard thread

OEM Number: 1138012

Oil Type: PAG150

Product Name: Compressor

Refrigerant Type: R12/R134a

Rotation: CW

O-Ring #1: 16-4224

O-Ring #2: 16-4224

Shaft Type: Keyed shaft

Diode Protection: None

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.

INTERCHANGE: 1131245 1131250 1131255 1131256 434-3180 5255A 1138012 509170-C91
