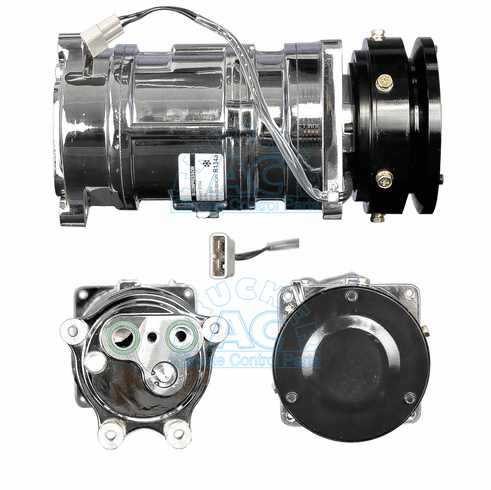

GM GMC/Off Road/Bus Replacment A6 S6 Compressor w/1 GR. 5''. 12V
Zoom

GM GMC/Off Road/Bus Replacment A6 S6 Compressor w/1 GR. 5''. 12V

Item# 03-1812Q
$570.75
Availability: Usually ships the same business day.

Specifications

Manufacturer: S6 GM A6 Replacment

Application: GMC/Off Road/Bus Applications

Description: S6 COMP W/1GR 5'' 12V HPS

Volts: 12V

Clutch Diameter: 5''

No. of Grooves: 1 groove

Belt Type: 1/2'' Belt

No. Comp. Cylinders: 10 cyl

Comp. Displacement (ci): 12.6 cu.in.

Factory Oil Charge: 225cc oil

Fitting Port Position: Rear

Fitting Style: GM O-ring Pad

Head Type: Pressure switch port

Wire Type: Has harness

Replacement Clutch Assy.: NSS

Model: S6

Mounting Type: Standard

OEM Number: replaces 1131200

Oil Type: PAG46

Product Name: Compressor

Refrigerant Type: R12/R134a

Rotation: CW

O-Ring #1: 16-4224

O-Ring #2: 16-4224

Shaft Type: Keyed shaft

Diode Protection: None

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
