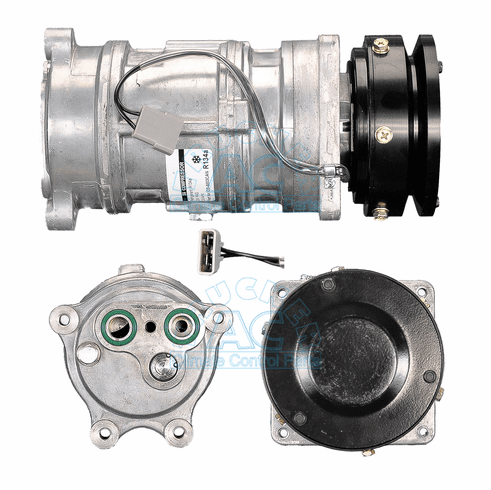

GM GMC/Off Road/Bus Replacment A6 S6 Compressor W/1GR 5'' 24V HPS
Specifications
Manufacturer: S6 GM A6 Replacment
Application: GMC/Off Road/Bus Applications
Description: S6 COMP. W/1GR 5'' 24V HPS
Volts: 24V
Clutch Diameter: 5''
No. of Grooves: 1 groove
Belt Type: 1/2'' Belt
No. Comp. Cylinders: 10 cyl
Comp. Displacement (ci): 12.6 cu.in.
Factory Oil Charge: 225cc oil
Fitting Port Position: Rear
Fitting Style: GM O-ring Pad
Head Type: Pressure switch port
Wire Type: Has harness
Replacement Clutch Assy.: NSS
Model: S6
Mounting Type: Standard
OEM Number: replaces 1131274
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R12/R134a
Rotation: CW
O-Ring #1: 16-4224
O-Ring #2: 16-4224
Shaft Type: Keyed shaft
Diode Protection: None
Notes: Replacement for OEM 1131274
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
