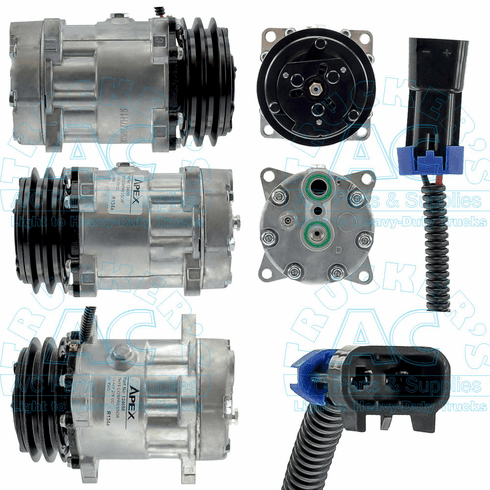

Sanden Style A/C Compressor Aftermarket - Chev/GMC
OEM Number: 15653237, 15020478, 15680077
Make: Sanden
Manufacturer #: 7803
Application: Chev/GMC Trucks
Description: A/C Compressor, R134a
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 270cc Oil
Fitting Port Position: Horizontal
Fitting Style: Ford O-ring Pad
Head Type: SJA
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-1002
Replacement Head Assy: NSS
Model: SD7H15HD
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Truck Air Oring 1: 16-4224
Truck Air Seal 1: 16-4224
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
INTERCHANGE: AIRSOURCE #5704G, ALLIANCE #N83-304006 / N83-304652, FLEETRITE #ZGG705020, CHEVROLET GMC #15679484 / 15680077, RED DOT #75R-83112, SANDEN #4679, VOLVO #3949302
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
