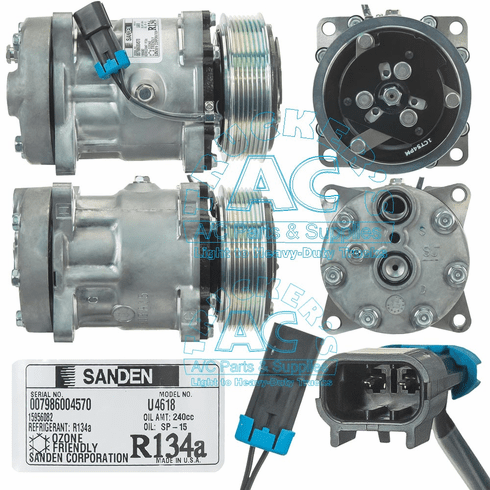

Sanden 4618 Chevrolet/GMC OEM# 15956082
Chevrolet/GMC,
2002 1995 C60-75, 7.2L V6, 3116 Cat, R134a, 7 groove OEM# 4618, 15956082
2002 1995 C60-75, 7.2L V6, 3116 Cat, R134a, 7 groove OEM# 4618, 15956082
Specifications
Manufacturer #: 4618
Application: Chev/GMC Trucks
Description: A/C Compressor, R134a
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 7 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 240cc Oil
Fitting Port Position: Horizontal
Fitting Style: Ford O-ring Pad
Head Type: SJA
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-3498
Replacement Head Assy: NSS
Model: SD7H15HD
Mounting Type: Ear 8 Long
OEM Number: 3949303, 15956082
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4224
O-Ring #2: 16-4224
Shaft Type: Long Key Shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and van AC parts.
INTERCHANGE: 4350 4542 5705 N83-304016 N83-304672 N83304016 N83304672 12387673 15956082 19130044 89024932 LE1275 75R-83132 RD5-10284-0 75R83132 RD5102840 4618 3949303
