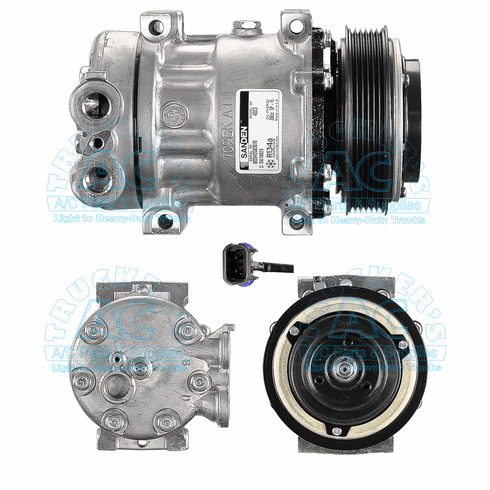

SANDEN 4261 Chevrolet & GMC
Specifications
Manufacturer #: 4261
Application: Chev/GMC Trucks
Description: SANDEN SD7H15 HT6-REPL. COMP
Additional Description: HT6 Replacement
Volts: 12V
Clutch Diameter: 112mm
No. of Grooves: 6 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 135cc Oil
Fitting Port Position: Top
Fitting Style: GM Sealing Washer Pad
Head Type: GT
Wire Type: 2 Wire SHINSUNG-PACKARD #830261
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: SD7H15HD
Mounting Type: SD7 Direct GM
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4281
O-Ring #2: 16-4045
Shaft Type: Involute Spline 13X24X0.5
Diode Protection: None
Notes: Manufactured by Sanden- replaces DELPHI HT-6, PV6, 4.4
