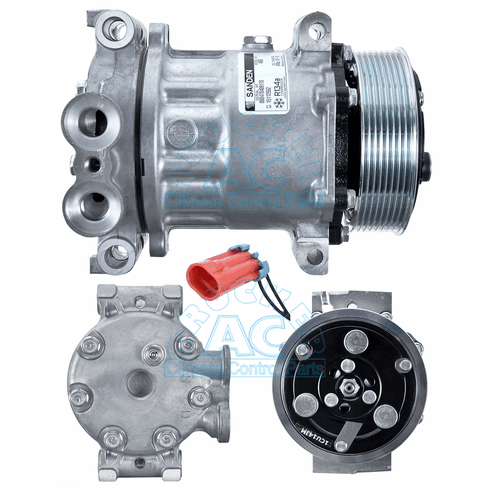

Sanden Compressor 4342 Chevrolet/GMC OEM# 19130045
Chevrolet/GMC, 2010 2004, T60-85 Ser, All w/8 grv, 119mm OE# Sanden (SD4342), OEM# 19130045
Specifications
Manufacturer #: 4342
Application: Chev/GMC Trucks
Description: COMPRESSOR/GMC T6500-8500
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 240cc Oil
Fitting Port Position: Top
Fitting Style: GM Sealing Washer Pad
Head Type: 4850
Wire Type: 2 Wire Female Packard #12177071
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: SD7H15
Mounting Type: SD7 Direct GM
OEM Number: 19130045
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4281
O-Ring #2: 16-4045
Shaft Type: Involute Spline 13X24X0.5
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5410 19130045 4342
