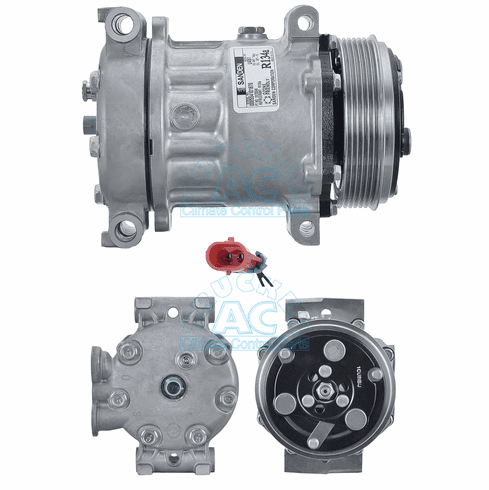

Sanden Compressor 4061 Chevrolet/GMC OEM# 19130046
Chevrolet/GMC, 2010 2008, C45-55, w/6.6L Eng. 6 grv, 122mm Sanden #SD4061, OEM# 19130046
Specifications
Manufacturer #: 4061
Application: Chev/GMC Trucks
Description: SANDEN COMP/08-10 C4500 6GR
Volts: 12V
Clutch Diameter: 122mm
No. of Grooves: 6 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 74cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Pad O-ring, Center, Suc over Dis, Single Bolt 3/8 -24UNF
Head Type: QC
Wire Type: 2 Wire Female Packard #12177071
Replacement Clutch Assy.: NSS
Replacement Head Assy: 03-6558
Model: SD7H15
Mounting Type: Direct Short
OEM Number: 19130046
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4224
O-Ring #2: 16-4224
Shaft Type: Involute Spline 13X24X0.5
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5429 19130046 4061
