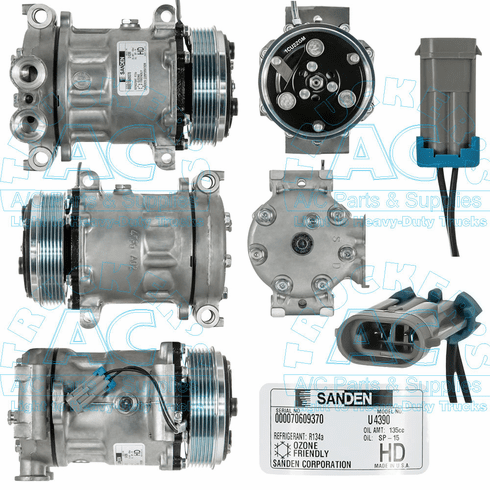

Sanden Compressor - Genuine OEM Grade # 1136641; 8-01135-6210
Zoom

Sanden Compressor - Genuine OEM Grade # 1136641; 8-01135-6210

Item# 03-1883
$318.09
Availability: Usually ships the same business day.

Product Description

OEM Number: 1136641; 8-01135-6210

Make: Sanden

Manufacturer #: 4390

Application: Chev/GMC Trucks

Description: SANDEN SD7H15 HT6-REPL. COMP

Additional Description: HT6 Replacement

Volts: 12V

Clutch Diameter: 119mm

No. of Grooves: 6 groove

Belt Type: Serpentine

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5 cu.in.

Factory Oil Charge: 135cc Oil

Fitting Port Position: Top

Fitting Style: GM Sealing Washer Pad

Head Type: GT

Wire Type: 2 Wire SHINSUNG-PACKARD #830261

Replacement Clutch Assy.: NSS

Replacement Head Assy: NSS

Model: SD7H15HD

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

Shaft Type: Involute Spline 13X24X0.5

Diode Protection: None

Truck Air Oring 1: 16-4281

Truck Air Oring 2: 16-4045

Truck Air Seal 1: 16-4281

Truck Air Seal 2: 16-4045



All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

INTERCHANGE: AIRSOURCE #54390, CHEVROLET GC (GM) #8-01135-621-0, SANDEN #4390

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
