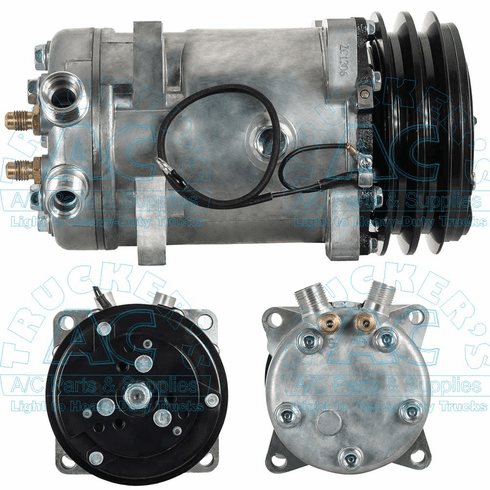

SANDEN 5424 Freightliner 9103 International (Navistar) 544929-C1
Sanden Compressor 9694 9120 for the following applications:
Freightliner, 2009 2008, SD510, w/2 gr. 132mm #9120
International (Navistar), SD508/510 SERIES, All, SD510 w/2 gr. 132mm (9120), 544929-C1
Kenworth, 1994 1980 All, SD510 w/2 gr. 132mm 5-1/4" dia. (5742), 9103, 9120, LE1000, LE1060
Mack, ALL MODELS SD508/510, w/2 gr. 5-1/4" dia. pulley w/flare fitting, 9103, 206RD45A, w/2 gr. 5-1/4" dia. pulley w/oring fitting, 9285
Peterbilt, SD508/SD510/SD510HD (R12), w/2 gr. 5-1/4" dia. w/oring fitting (5742), 9120
Specifications
Manufacturer #: 5424
Application: Multi Fit Applications
Description: A/C Compressor, R12
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 5 cyl
Comp. Displacement (ci): 9.8 cu.in.
Factory Oil Charge: 175cc Oil
Fitting Port Position: Vertical
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: FG
Wire Type: 1 Wire Male Packard #12015791 No Diode
Replacement Clutch Assy.: 02-3064
Replacement Head Assy: 03-6503
Model: SD510HD
Mounting Type: Ear 8 Long
Oil Type: Mineral
Product Name: Compressor
Refrigerant Type: R12
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: SD5 Keyed Shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
INTERCHANGE: 5920 N83-303272 N83-304202 N83-304272 N83-304332 N83303272 N83304202 N83304272 N83304332 501-200A LE1000 LE1055 LE1060 E93Z-19703B E93Z19703B 1401010 206RD45 206RD45A 206RD45AM 206RD48AM 25164625 544929-C1 18-03536 K318-27-3 75R-81702 75R-8212 RD5-11348-0 RD5-5443-0 544929C1 1803536 K318273 75R81702 75R8212 RD5113480 RD554430 5424 5742 9120 9139 9677 9694 3918270 02-7029595 61104-3417 N83-304684 027029595 611043417 N83304684
Freightliner, 2009 2008, SD510, w/2 gr. 132mm #9120
International (Navistar), SD508/510 SERIES, All, SD510 w/2 gr. 132mm (9120), 544929-C1
Kenworth, 1994 1980 All, SD510 w/2 gr. 132mm 5-1/4" dia. (5742), 9103, 9120, LE1000, LE1060
Mack, ALL MODELS SD508/510, w/2 gr. 5-1/4" dia. pulley w/flare fitting, 9103, 206RD45A, w/2 gr. 5-1/4" dia. pulley w/oring fitting, 9285
Peterbilt, SD508/SD510/SD510HD (R12), w/2 gr. 5-1/4" dia. w/oring fitting (5742), 9120
Specifications
Manufacturer #: 5424
Application: Multi Fit Applications
Description: A/C Compressor, R12
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 5 cyl
Comp. Displacement (ci): 9.8 cu.in.
Factory Oil Charge: 175cc Oil
Fitting Port Position: Vertical
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: FG
Wire Type: 1 Wire Male Packard #12015791 No Diode
Replacement Clutch Assy.: 02-3064
Replacement Head Assy: 03-6503
Model: SD510HD
Mounting Type: Ear 8 Long
Oil Type: Mineral
Product Name: Compressor
Refrigerant Type: R12
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: SD5 Keyed Shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
INTERCHANGE: 5920 N83-303272 N83-304202 N83-304272 N83-304332 N83303272 N83304202 N83304272 N83304332 501-200A LE1000 LE1055 LE1060 E93Z-19703B E93Z19703B 1401010 206RD45 206RD45A 206RD45AM 206RD48AM 25164625 544929-C1 18-03536 K318-27-3 75R-81702 75R-8212 RD5-11348-0 RD5-5443-0 544929C1 1803536 K318273 75R81702 75R8212 RD5113480 RD554430 5424 5742 9120 9139 9677 9694 3918270 02-7029595 61104-3417 N83-304684 027029595 611043417 N83304684
