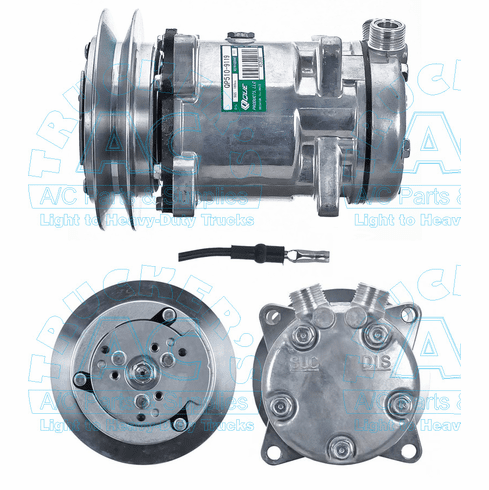

Sanden 9119 9680 Multi Fit - DISCONTINUED
Sanden 9119 9680 Multi Fit - DISCONTINUED
Manufacturer #: 9119
Application: Multi Fit Applications
Description: A/C Compressor, R12
Volts: 12V
Clutch Diameter: 158mm
No. of Grooves: 1 groove
Belt Type: Variable groove
No. Comp. Cylinders: 5 cyl
Comp. Displacement (ci): 9.8 cu.in.
Factory Oil Charge: 135cc Oil
Fitting Port Position: Vertical
Fitting Style: Tube-O 1 x 14
Head Type: C
Wire Type: 1 Wire Male Bullet
Replacement Clutch Assy.: 02-3469
Replacement Head Assy: 03-6544
Model: SD510HD
Mounting Type: Ear 8 Long
Oil Type: Mineral
Product Name: Compressor
Refrigerant Type: R12
Rotation: CW
O-Ring #1: 16-4210
O-Ring #2: 16-4210
Shaft Type: SD5 Keyed Shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: AirSource 5919 N83-304292 N83304292 N83-304402 N83304402 N83-304983 N83304983 1401009 1401024 525725 525726 606101 LE1030 LE1200 967014 ZGG11041 75R-8222 75R8222 RD5-5200-0 RD55200-0 RD552000 9119 9628 9680 1110148 3945306 61104-0013 611040013 V1110148
