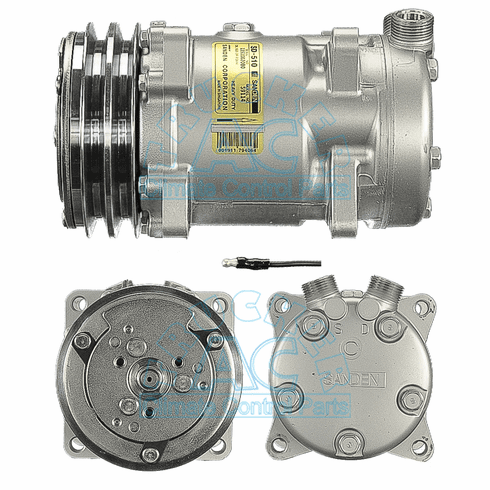

Sanden Universal Compressor # 9114

Specifications

Manufacturer #: 9114

Application: Multi Fit Applications

Description: A/C Compressor, R12

Volts: 12V

Clutch Diameter: 132mm

No. of Grooves: 2 groove

Belt Type: Two 1/2'' Belts

No. Comp. Cylinders: 5 cyl

Comp. Displacement (ci): 9.8 cu.in.

Factory Oil Charge: 135cc Oil

Fitting Port Position: Vertical

Fitting Style: Tube-O 1 x 14

Head Type: C

Wire Type: 1 Wire Male Bullet

Replacement Clutch Assy.: 02-3064

Replacement Head Assy: 03-6544

Model: SD510HD

Mounting Type: Ear 8 Long

Oil Type: Mineral

Product Name: Compressor

Refrigerant Type: R12

Rotation: CW

O-Ring #1: 16-4210

O-Ring #2: 16-4210

Shaft Type: SD5 Keyed Shaft

Diode Protection: None

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.

INTERCHANGE: 5925 2508799-C91 75R-8202 RD5-5001-0 9114 488-22067
