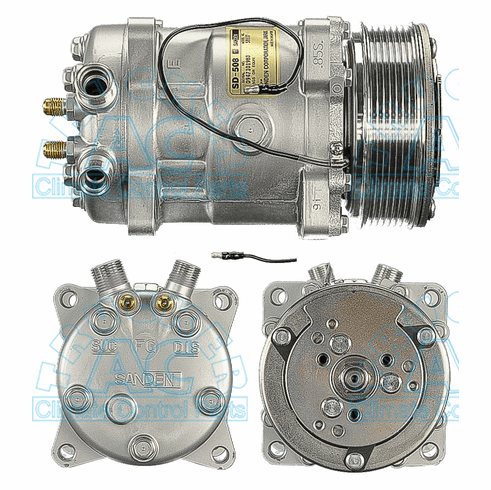

Sanden Universal Compressor # 9537
Specifications
Manufacturer #: 9537
Application: Multi Fit Applications
Description: A/C Compressor, R12
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 7 groove
Belt Type: Serpentine
No. Comp. Cylinders: 5 cyl
Comp. Displacement (ci): 8.4 cu.in.
Factory Oil Charge: 175cc Oil
Fitting Port Position: Vertical
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: FG
Wire Type: 1 Wire Male Bullet
Replacement Clutch Assy.: 02-3475
Replacement Head Assy: 03-6503
Model: SD508
Mounting Type: Ear 8 Long
Oil Type: Mineral
Product Name: Compressor
Refrigerant Type: R12
Rotation: CW/CCW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: SD5 Keyed Shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5937 N83-304152 525915 LE1090 1401015 1401017 1682425-C92 75R-8272 RD5-5696-0 9537 3918287
