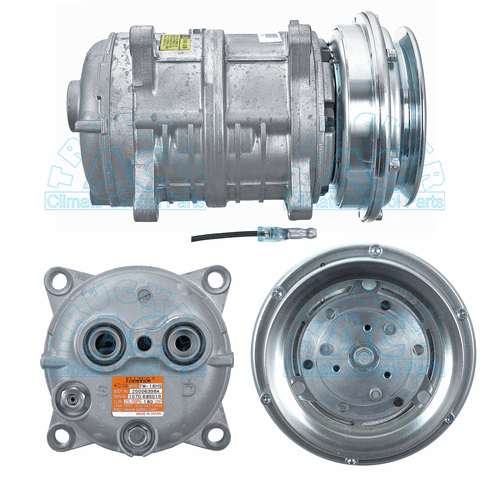

Seltec Universal Compressor OEM# 488-46230
Specifications
Manufacturer #: 488-46230
Application: Multi Fit Applications
Description: A/C Compressor, R134a
Additional Description: Overhang type
Volts: 12V
Clutch Diameter: 4.9''
No. of Grooves: 1 groove
Belt Type: 1/2'' Belt
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.7 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Horizontal
Fitting Style: Universal O-ring Pad
Head Type: G
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3039
Replacement Head Assy: NSS
Model: TM16HD/HS
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4144
O-Ring #2: 16-4144
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5807 2521204 10056081 10056230 435-56081 435-56230 488-46081 488-46230 43556081 43556230 48846081 48846230 512117 512118
