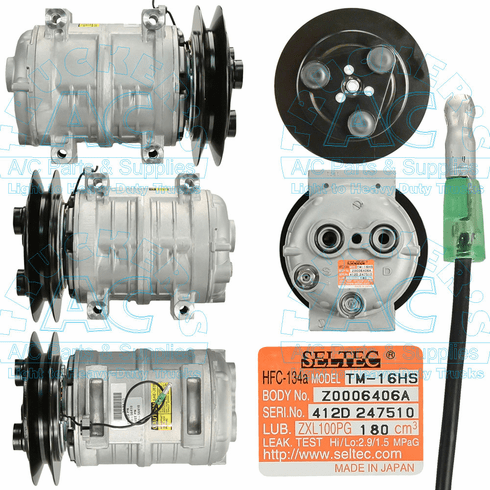

Seltec/Valeo Compressor OEM #: 10356410, 10056410

Seltec/Valeo Compressor OEM #: 10356410, 10056410

Item# 03-3116T
Availability: Usually ships the same business day.

Make: Seltec - Valeo

Manufacturer: Valeo

Application: Multi Fit Applications

Description: TM16 DIR.MT. 12V VG CL. 1W

Volts: 12V

Clutch Diameter: 158mm

No. of Grooves: 1 groove

Belt Type: Variable groove

No. Comp. Cylinders: 6 cyl

Comp. Displacement (ci): 9.7

Factory Oil Charge: 180cc Oil

Fitting Port Position: Horizontal

Fitting Style: Universal O-ring Pad

Head Type: G - Univ Pad type

Wire Type: 1 Wire bullet

Replacement Clutch Assy.: 02-3041

Replacement Head Assy: NSS

Model: TM16HD/HS

Mounting Type: Direct mount

OEM Number: 10356410, 10056410

Oil Type: PAG46

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW/CCW

Shaft Type: Splined shaft

Diode Protection: None

Truck Air Oring 1: 16-4144

Truck Air Seal 1: 16-4144


All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
