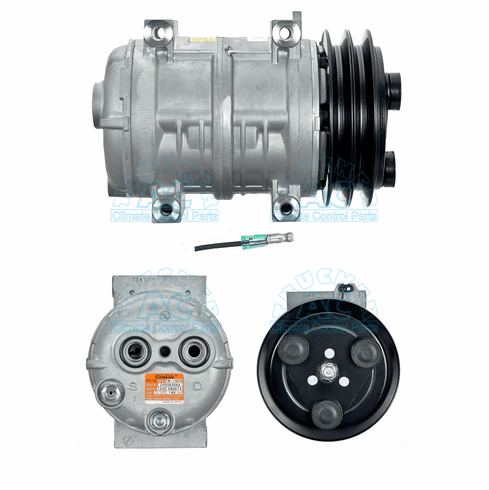

Seltec Universal Compressor OEM# xxx-56409
Specifications
Manufacturer #: 10356409
Application: Multi Fit Applications
Description: UNIV TM16HD COMP S/12V 2GR 1
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.7 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Horizontal
Fitting Style: Universal O-ring Pad
Head Type: G
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3034
Replacement Head Assy: NSS
Model: TM16HD/HS
Mounting Type: Direct mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4144
O-Ring #2: 16-4144
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5792T 10356409 103-56409 10056380 10056392 10356380 10356392 103-56380 103-56392
