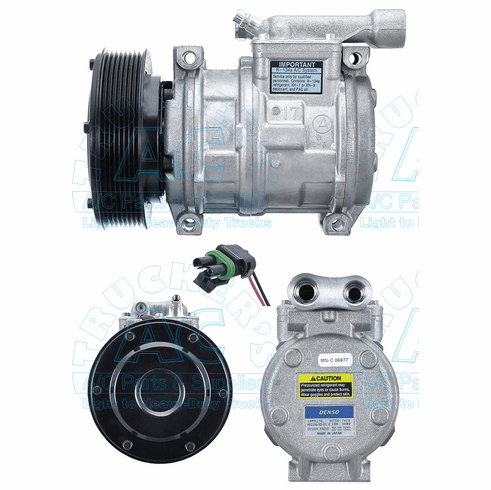

Denso Compressor & Clutch John Deere OEM# AT168543

John Deere, Nippondenso, 8 gr w/10PA17C 24v, OEM# AT168543

John Deere, LOADERS - 444H, 544H, 624H, 644H, 644J, 724J, OEM# AT226273, 447180-5480, 471-0456

John Deere, LOG LOADERS - 444H LL, 544HLL, 624HLL, OEM# AT226273, 447180-5480, 471-0456

John Deere, TOOL CARRIERS - TC44H, TC54H, TC62H, OEM# AT226273, 447180-5480, 471-0456

John Deere, UTILITY LOADERS - 444J, 544J, 624J, OEM# AT226273, 447180-5480, 471-0456

John Deere, WINDROWERS, All w/OE# AT168543

John Deere, ALL MODELS, Denso, OEM# AT168543, AT172975

Specifications

Application: John Deere Applications

Description: 10PA17C COMP 24v 8gr 145MM

Volts: 24V

Clutch Diameter: 145mm

No. of Grooves: 8 groove

Belt Type: Serpentine

No. Comp. Cylinders: 10 cyl

Comp. Displacement (ci): 10.8 ci

Factory Oil Charge: Check label instructions

Fitting Port Position: Body

Fitting Style: uses Manifold

A-B Distance: 1-7/16''

Wire Type: 2 Wires

Replacement Clutch Assy.: 02-3080

Model: 10PA17C

Mounting Type: Direct mount

OEM Number: AT226273

Oil Type: PAG46

Product Name: Compressor

Refrigerant Type: R134a

Shaft Type: Splined shaft

Diode Protection: None

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.

INTERCHANGE: AT226273 AT168543 AT172975 75R-8934 RD5-11050-0 75R8934 RD5110500 5831 447180-5480 447220-7410 471-0456 4471805480 4472207410 4710456
