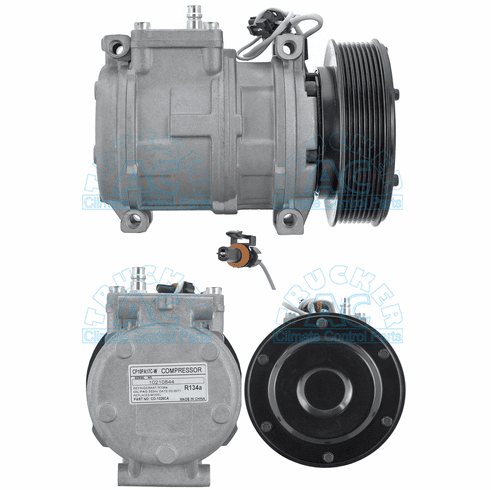

Denso Compressor & Clutch John Deere OEM# RE46609
John Deere, WINDROWERS, All OEM# RE46609
John Deere, Nippondenso, OEM# 047100-8530
Specifications
Application: John Deere Applications
Description: 10PA17C COMP 12v 8gr 145MM
Volts: 12V
Clutch Diameter: 145mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 10 cyl
Comp. Displacement (ci): 10.8 ci
Factory Oil Charge: Check label instructions
Fitting Port Position: Body
Fitting Style: uses Manifold
A-B Distance: 1-7/16''
Wire Type: 2 Wires
Replacement Clutch Assy.: 02-3081
Model: 10PA17C
Mounting Type: Direct mount
OEM Number: RE46609
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: AH169875 TY6764 RE46609 RE54254 5479 N83-304155 447100-2387 447100-2388 447200-4932 N83304155 4471002387 4471002388 4472004932 RE69716 42511-09681-3 42511096813 0471008530
