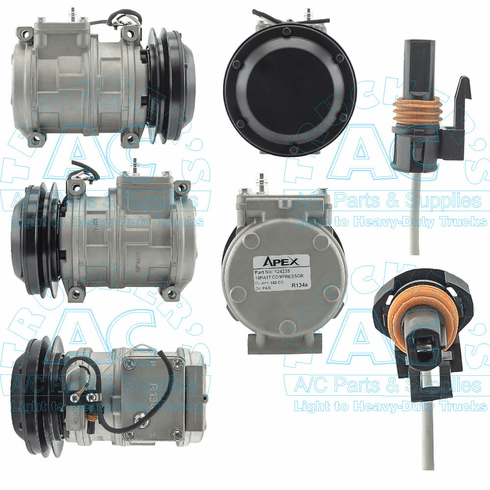

Denso Style A/C Compressor - John Deere #RE46657
Denso Style A/C Compressor - John Deere #RE46657
Denso Style A/C Compressor - John Deere #RE46657
Item#: 03-3164G
Availability: Usually ships the same business day
$363.63

Product Description
OEM Number: RE46657

Make: Denso Style (APEX)

Application: John Deere Applications

Description: 10PA17C COMP 12v 1gr 146MM

Volts: 12V

Clutch Diameter: 146mm

No. of Grooves: 1 groove

Belt Type: 1/2'' Belt

No. Comp. Cylinders: 10 cyl

Comp. Displacement (ci): 10.8 ci

Factory Oil Charge: Check label instructions

Fitting Port Position: Body

Fitting Style: uses Manifold

A-B Distance: 1-5/8''

Wire Type: 2 Wires

Replacement Clutch Assy.: 02-3069

Model: 10PA17C

Oil Type: PAG46

Product Name: Compressor

Refrigerant Type: R134a

Shaft Type: Splined shaft

Diode Protection: None



All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

INTERCHANGE: AIRSOURCE #5833G, DENSO #42511-09682-0 / 447100-2499, JOHN DEERE #RE46657, RED DOT #75R-9062 / RD5-14080-0

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
