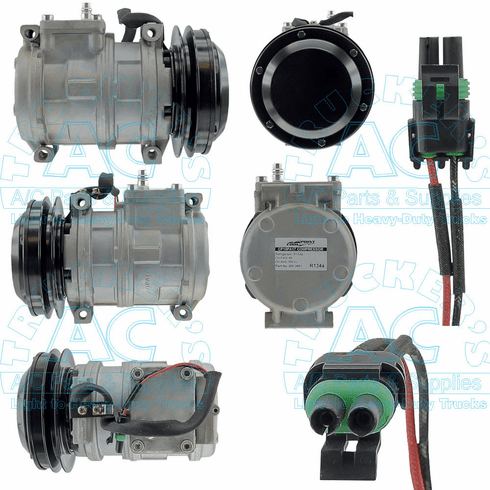

Denso Style A/C Compressor - John Deere #AT163728
Denso Style A/C Compressor - John Deere #AT163728
Denso Style A/C Compressor - John Deere #AT163728
Item#: 03-3166G
Availability: Usually ships the same business day

Product Description
OEM Number: AT163728

Make: Denso

Application: John Deere Applications

Description: 10PA17C COMP 24v 1gr 146MM

Volts: 24V

Clutch Diameter: 146mm

No. of Grooves: 1 groove

Belt Type: 1/2'' Belt

No. Comp. Cylinders: 10 cyl

Comp. Displacement (ci): 10.8 ci

Factory Oil Charge: Check label instructions

Fitting Port Position: Body

Fitting Style: uses Manifold

A-B Distance: 1-5/16''

Wire Type: 2 Wires

Replacement Clutch Assy.: 02-3062

Model: 10PA17C

Oil Type: PAG46

Product Name: Compressor

Refrigerant Type: R134a

Shaft Type: Splined shaft

Diode Protection: None

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

INTERCHANGE: AIRSOURCE #5834G, DENSO #42511-09684-4 / 447100-4198 / 471-0446, JOHN DEERE #AT163728 / TY6783, RED DOT #75R-9024 / RD5-14068-0

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
