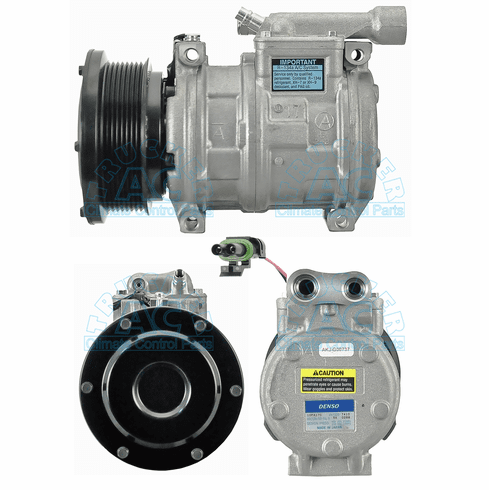

Denso Compressor & Clutch John Deere OEM# AT211063
LOADERS - 744H 744J, 824J, OEM# AT211063, 447170-5074, 471-0452
Specifications
Application: John Deere Applications
Description: 10PA17C COMP 24v 8gr 136MM
Volts: 24V
Clutch Diameter: 136mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 10 cyl
Comp. Displacement (ci): 10.8 ci
Factory Oil Charge: Check label instructions
Fitting Port Position: Body
Fitting Style: uses Manifold
A-B Distance: 1-7/16''
Wire Type: 2 Wires
Replacement Clutch Assy.: 02-3093
Model: 10PA17C
Mounting Type: Direct mount
OEM Number: AT211063
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5837 42511-09689-9 42511096899 447100-5074 447200-3667 471-0452 4471005074 4472003667 4710452 AT211063
