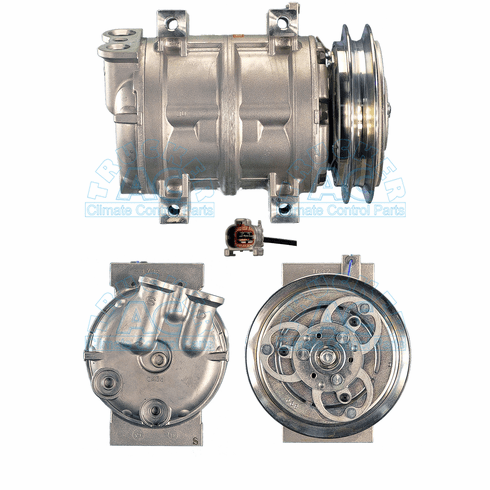

Seltec Compressor KOMATSU OEM# 506011-7441 203-9786831
KOMATSU, All, w/1 groove 24V DKS15CH, OEM# 506011-7441
CATERPILLAR, Denso Models, 10S17C w/1 Grv. 140mm 5.51" Dia., 24V, OEM# 231-6984
Specifications
Application: Farm & Off Road Applications
Description: DKS15CH COMPRESSOR/KOMATSU
Volts: 24V
Clutch Diameter: 138mm
No. of Grooves: 1 groove
Belt Type: 5/8'' Belt
No. Comp. Cylinders: 6 cyl
Factory Oil Charge: Check label instructions
Fitting Port Position: Top
Fitting Style: Pad-single bolt at 1PM
A-B Distance: 2-1/4''
Wire Type: 1 Wire harness
Replacement Clutch Assy.: NSS
Model: DKS15CH
Mounting Type: Direct mount
OEM Number: 506011-7441; 203-9786831
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Additional Notes: 5/8'' belt width
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5851 203-9796831 506011-7441 2039796831 5060117441
