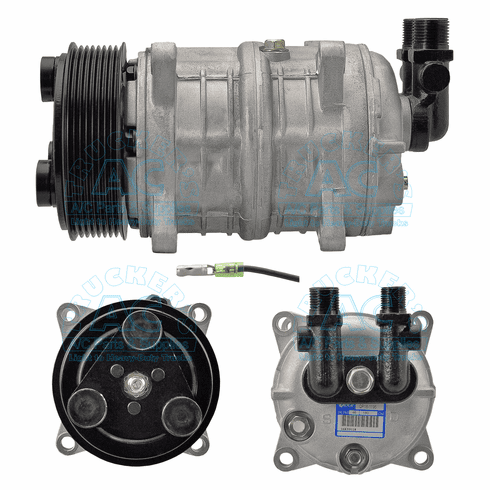

Que Seltec Style Multi Fit Applications OEM# 488-46234
Zoom

Que Seltec Style Multi Fit Applications OEM# 488-46234

Item# 03-3185Q
$220.95
Availability: Usually ships the same business day.

Specifications

Manufacturer #: 488-46234

Application: Multi Fit Applications

Description: QUE SELTEC COMPRESSOR/R134a

Volts: 12V

Clutch Diameter: 125mm

No. of Grooves: 8 groove

Belt Type: Serpentine

No. Comp. Cylinders: 6 cyl

Comp. Displacement (ci): 9.7 cu.in.

Factory Oil Charge: 180cc Oil

Fitting Port Position: Vertical

Fitting Style: Pad w/D-style #8-#10 O-ring manifold

Head Type: D

Wire Type: 1 Wire bullet

Replacement Clutch Assy.: 02-3058

Replacement Head Assy: 03-6536

Model: TM16

Mount Type: Splined shaft clutch

Mounting Type: Ear mount

Oil Type: PAG46

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW/CCW

O-Ring #1: 16-4208

O-Ring #2: 16-4210

Shaft Type: Splined shaft

Diode Protection: None

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.

INTERCHANGE: 512205 48846234 488-46234
