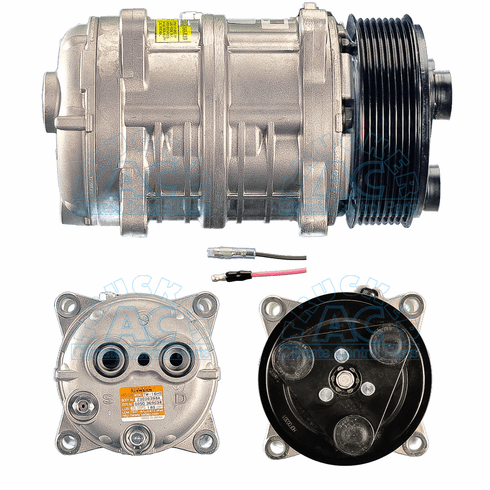

Seltec Universal Compressor OEM# 10056244 488-46244
Specifications
Manufacturer #: 10056244
Application: Multi Fit Applications
Description: UNIV TM16HD COMP S/12V 8GR 1
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.7 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Horizontal
Fitting Style: Universal O-ring Pad
Head Type: G
Wire Type: 2 Wire Metripak
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: TM16HD/HS
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4144
O-Ring #2: 16-4144
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 18-00074-00 180007400 2521610 2521616 10056244 10356244 435-56244 488-46244 43556244 48846244
