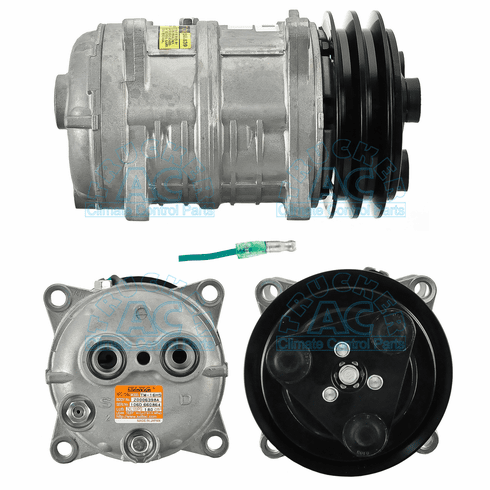

Seltec Universal Type - R134a - Compressor OE# 488-46212
Specifications
Manufacturer #: 488-45212
Application: Farm & Off Road Applications
Description: A/C Compressor, R134a
Volts: 24V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.7 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Horizontal
Fitting Style: Universal O-ring Pad
Head Type: G
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3047
Replacement Head Assy: NSS
Model: TM16HD/HS
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4144
O-Ring #2: 16-4144
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 10055212 10055317 10055329 10055379 435-55017 435-55029 435-55079 435-55212 435-55317 435-55329 435-55379 488-25002 488-25003 488-25017 488-45017 488-45029 488-45079 488-45212 488-45317 488-45329 488-45379 43555017 43555029 43555079 43555212 43555317 43555329 43555379 48825002 48825003 48825017 48845017 48845029 48845079 48845212 48845317 48845329 48845379 5794 N83-304779 N83304779 525977 76047005 ZGG705052 2521175 2521199 2521456 2521458 75R-8544 75R8544 10056017 10056029 10056079 10056212 435-56017 435-56029 435-56079 435-56212 488-46017 488-46029 488-46079 488-46212 43556017 43556029 43556079 43556212 48846017 48846029 48846079 48846212 512119 512120 CH95311
