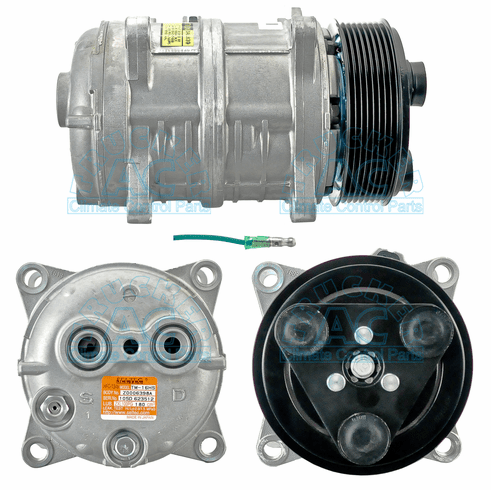

Seltec Universal Compressor OEM# 488-45032 xxx-46236
Specifications
Manufacturer #: 488-45032
Application: Farm & Off Road Applications
Description: A/C Compressor, R134A
Volts: 24V
Clutch Diameter: 125mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.7 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Horizontal
Fitting Style: Universal O-ring Pad
Head Type: G
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3061
Replacement Head Assy: NSS
Model: TM16HD/HS
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4144
O-Ring #2: 16-4144
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 2521471 10056032 10056123 10056125 10056129 10056131 10056236 10056331 435-56032 435-56123 435-56125 435-56129 435-56131 435-56236 435-56331 488-46123 488-46125 488-46129 488-46131 488-46236 488-46331 18-00093-06 43556032 43556123 43556125 43556129 43556131 43556236 43556331 48846123 48846125 48846129 48846131 48846236 48846331 180009306 2521333 2521526 10055123 10055125 10055129 10055131 10055236 10055325 435-55027 435-55032 435-55123 435-55125 435-55129 435-55131 435-55236 435-55325 488-45027 488-45032 488-45042 488-45123 488-45125 488-45131 488-45236 488-45325 102-581 43555027 43555032 43555123 43555125 43555129 43555131 43555236 43555325 48845027 48845032 48845042 48845123 48845125 48845131 48845236 48845325 102581
