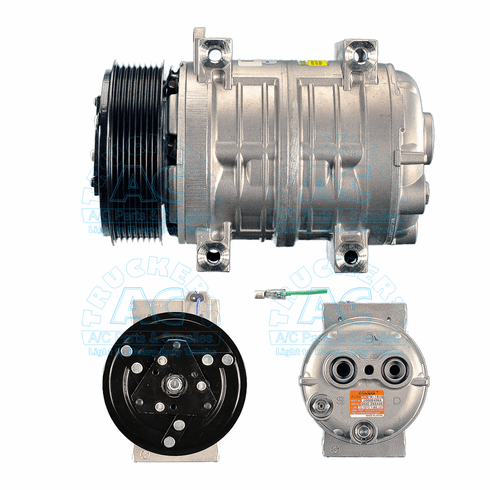

Seltec Farm and Off Road # 10356402
Specifications
Manufacturer #: 10356402
Application: Farm & Off Road Applications
Description: TM16 DIR MT COMP 24V 8GR
Volts: 24V
Clutch Diameter: 123mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.7 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Horizontal
Fitting Style: Universal O-ring Pad
Head Type: G
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: TM16HD/HS
Mounting Type: Direct mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4144
O-Ring #2: 16-4144
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5806T
