T/CCI (York Style) Manufacturer #: ET210L-25246C

T/CCI (York Style) Manufacturer #: ET210L-25246C

Item# 03-3320
Availability: Usually ships the same business day.


Manufacturer: T/CCI (York Style)

Manufacturer #: ET210L-25246C

Application: Multi Fit Applications

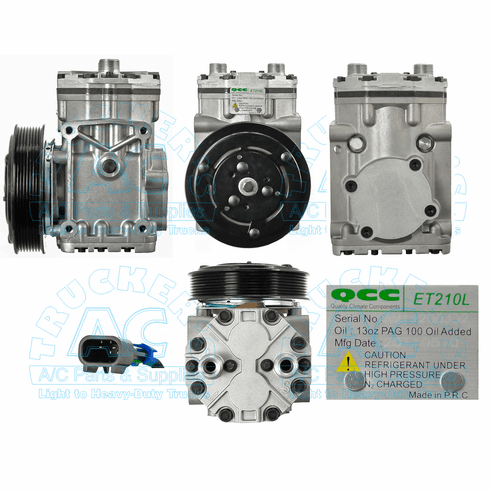

Description: QCC STYLE ET210L-25246C COMP

Volts: 12V

Clutch Diameter: 6-1/8''

No. of Grooves: 8 groove

Belt Type: Serpentine

No. Comp. Cylinders: 2 cyl

Comp. Displacement (ci): 10 c.i.

Factory Oil Charge: 14 oz oil

Fitting Port Position: LH SUCTION

Fitting Style: Tube-O 1 x 14

A-B Distance: 1-5/8''

Head Type: TUBE-O

Wire Type: 2 Wire Metripack

Replacement Clutch Assy.: 02-3418

Model: ET210L

Mount Type: Clutch has keyed shaft

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R12/R134a

Rotation: CW/CCW

O-Ring #1: 16-4210

O-Ring #2: 16-4210

Shaft Type: Keyed shaft

Diode Protection: w/diode

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
