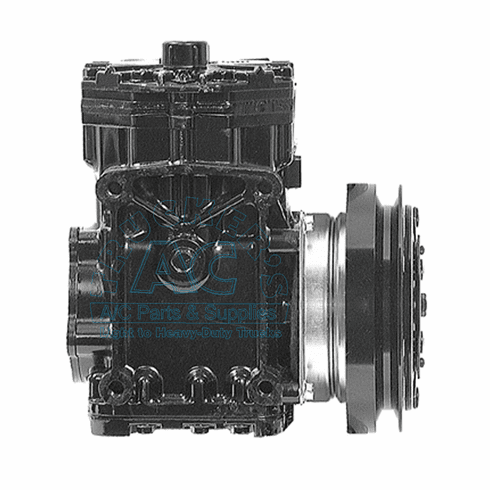

A/C Compressor w/clutch Manufacturer #: ET210L-25313C - T/CCI (York Style)
Make: T/CCI (York Style)
Manufacturer: T/CCI (York Style)
Manufacturer #: ET210L-25313C
Application: T/CCI Compressor Applications
Description: A/C Comp/Clutch Conversion Kit
Volts: 12V
Clutch Diameter: 6''
No. of Grooves: 1 groove
Belt Type: 1/2'' Belt
No. Comp. Cylinders: 2 cyl
Comp. Displacement (ci): 10 c.i.
Factory Oil Charge: 14 oz oil
Fitting Port Position: LH SUCTION
Fitting Style: Tube-O 1 x 14
A-B Distance: 2-11/16''
Head Type: TUBE-O
Wire Type: 2 WIRE-METRIPAK
Replacement Clutch Assy.: 02-3427
Model: ET210L
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R12/R134a
Rotation: CW/CCW
Shaft Type: Keyed shaft
SS PNO: Discontinued-NLA
Diode Protection: w/diode
Truck Air Oring 1: 16-4265
Truck Air Seal 1: 16-4265
INTERCHANGE: AIRSOURCE 5274
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
