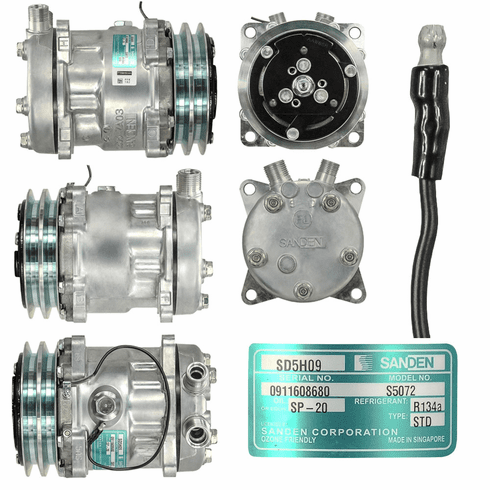

Seltec/Valeo Compressor #: 5072
Make: Sanden
Manufacturer #: 5072
Application: Multi Fit Applications
Description: A/C Compressor, R134a
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 5 cyl
Comp. Displacement (ci): 5.3 cu.in.
Factory Oil Charge: 100cc Oil
Fitting Port Position: Vertical
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: FL
Wire Type: 1 Wire Male Bullet
Replacement Clutch Assy.: NSS
Replacement Head Assy: 03-6543
Model: SD5H09HD
Mounting Type: Ear 8 Short
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Keyed shaft
Diode Protection: None
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
INTERCHANGE: AIRSOURCE 5786; ALLIANCE N83-304622; CARRIER AC 7104474Z; KYSOR 1401391; RED DOT 75R-82102; SANDEN 5071, 5072, 9056
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
