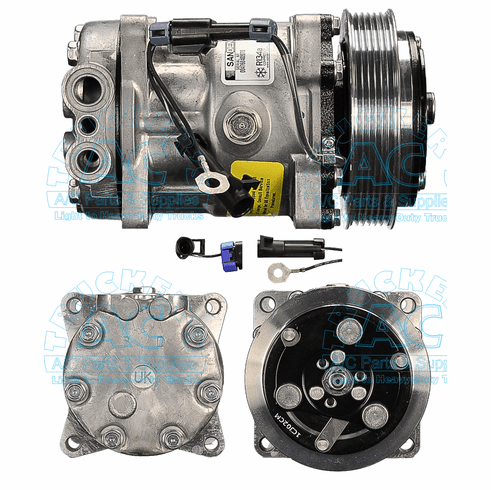

SANDEN 4467 T/CCI Compressor Applications 5298 1401402
Specifications
Manufacturer #: 4467
Application: T/CCI Compressor Applications
Description: SANDEN T/CCI COMPRESSOR 6GR
Volts: 12V
Clutch Diameter: 128mm
No. of Grooves: 6 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: Check label instructions
Fitting Port Position: Top
Fitting Style: Pad
Head Type: UK
Wire Type: 2 Wire Female Packard #15300002 W/ Jumper #4894-0400
Replacement Clutch Assy.: NSS
Replacement Head Assy: 03-6548
Model: SD7H15HD
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Shaft Type: Long Key Shaft
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
INTERCHANGE: 5298 4467 1401402
