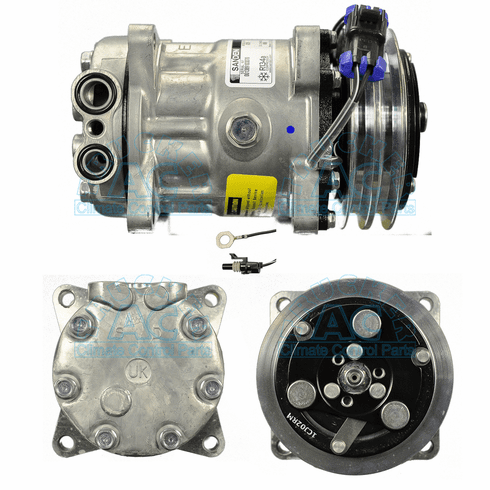

Sanden 4318 T/CCI Compressor Applications

Sanden Compressor to replace CCI comp w/2 groove

Specifications

Manufacturer #: 4318

Application: T/CCI Compressor Applications

Description: SANDEN T/CCI COMPRESSOR 2GR

Volts: 12V

Clutch Diameter: 132mm

No. of Grooves: 2 groove

Belt Type: Two 1/2'' Belts

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5 cu.in.

Factory Oil Charge: Check label instructions

Fitting Port Position: Top

Fitting Style: Pad

Head Type: UK

Wire Type: 2 Wire Female Packard #15300002 W/ Jumper #4315-0400

Replacement Clutch Assy.: NSS

Replacement Head Assy: 03-6548

Model: SD7H15HD

Mounting Type: Ear 8 Long

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

O-Ring #1: 16-4208

O-Ring #2: 16-4210

Shaft Type: Long Key Shaft

Diode Protection: w/diode

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We stock a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands.

INTERCHANGE: 5299 4318
