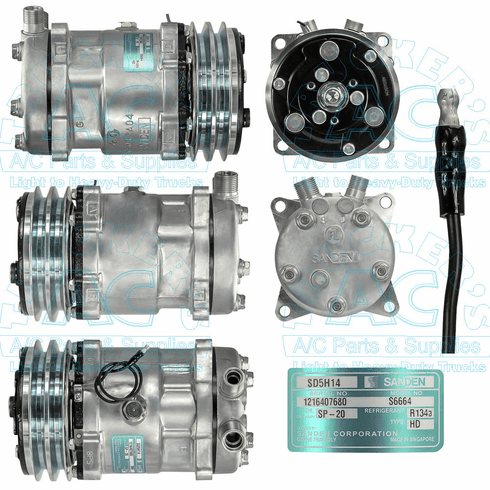

Sanden Compressor - Genuine OEM Grade #: 4510 Multi Fit
Make: Sanden
Manufacturer #: 4510
Application: Multi Fit Applications
Description: SANDEN SD5H14 COMPRESSOR
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 5 cyl
Comp. Displacement (ci): 8.4 cu.in.
Factory Oil Charge: 210cc Oil
Fitting Port Position: Vertical
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: FL
Wire Type: 1 Wire Male Bullet
Replacement Clutch Assy.: 02-3064
Replacement Head Assy: 03-6543
Model: SD5H14HD
Mount Type: Clutch has keyed shaft
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
Shaft Type: SD5 Keyed Shaft
Diode Protection: None
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
INTERCHANGE: AIRSOURCE 54510
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
