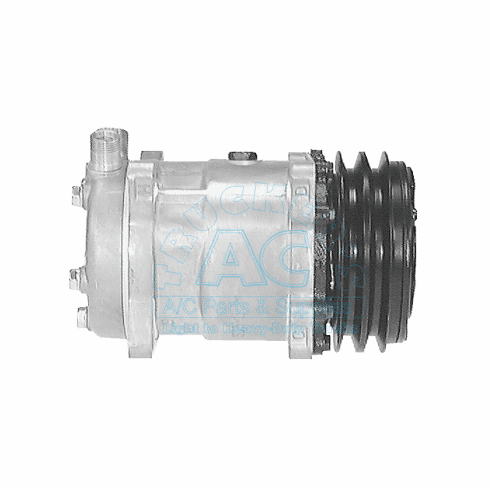

Sanden 4506 - REPLACED by 03-3489A
This compressor has been replaced by 03-3489A
Specifications
Manufacturer #: 4506
Application: Farm & Off Road Applications
Description: A/C Compressor, R134A
Volts: 24V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 5 cyl
Comp. Displacement (ci): 8.4 cu.in.
Factory Oil Charge: 210cc Oil
Fitting Port Position: Vertical
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: FL
Wire Type: 1 Wire Male Bullet
Replacement Clutch Assy.: 02-3470
Model: SD5H14HD
Mount Type: Clutch has keyed shaft
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: SD5 Keyed Shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
INTERCHANGE: 5774
