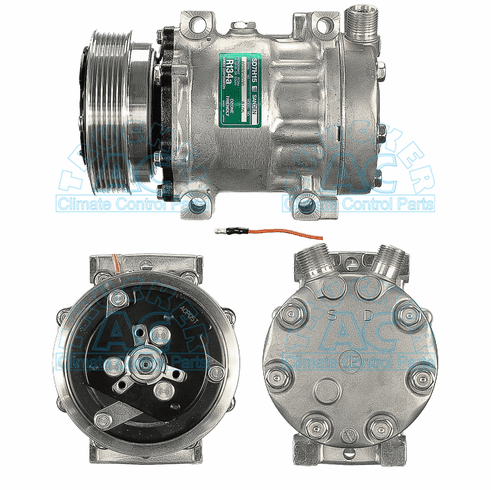

Sanden Compressor # 8105 4628 Multi Fit Applications
Specifications
Manufacturer #: 4628
Application: Multi Fit Applications
Description: A/C Compressor, R134a
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 6 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 240cc Oil
Fitting Port Position: Vertical
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: JD
Wire Type: 1 Wire Male Bullet
Replacement Clutch Assy.: 02-3466
Replacement Head Assy: 03-6533
Model: SD7H15
Mounting Type: SD7 Direct Ford
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5716 N83-304293 E1FZ-19703B E4TZ-19703C E6FZ-19703B E7GZ-19703BA E8AZ-19703A E8AZ-19703B E8AZ-19703C E8TZ-19703A E9GY-19703C E9TZ-19703B E9TZ-19703C F0TZ-19703D F37Z-19703D 75R-84512 4628 8105 512089 512097 N83304293 E1FZ19703B E4TZ19703C E6FZ19703B E7GZ19703BA E8AZ19703A E8AZ19703B E8AZ19703C E8TZ19703A E9GY19703C E9TZ19703B E9TZ19703C F0TZ19703D F37Z19703D 75R84512 512070 AC501-226A AC501226A 501-226A 501226A
