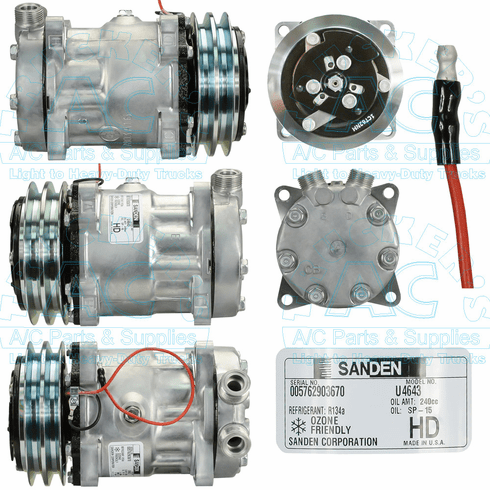

Sanden Compressor - Genuine, Manufacturer #: 4643
Make: Sanden
Manufacturer #: 4643
Application: Multi Fit Applications
Description: A/C Compressor, R134a
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 240cc Oil
Fitting Port Position: Vertical
Fitting Style: Tube-O 1 x 14
Head Type: CB
Wire Type: 1 Wire Male Bullet
Replacement Clutch Assy.: 02-3464
Replacement Head Assy: 03-6541
Model: SD7H15HD
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: None
Truck Air Oring 1: 16-4210
Truck Air Seal 1: 16-4210
MASSEY FERGUSON TRACTOR: 3060, 3660, 3670, Sanden SD7H15 (model 4643) w/2 gr 12v clutch
INTERCHANGE: AIRSOURCE 5725; ALLIANCE N83-304313; RED DOT 75R-84552; SANDEN 4520, 4525, 4529, 4643
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
