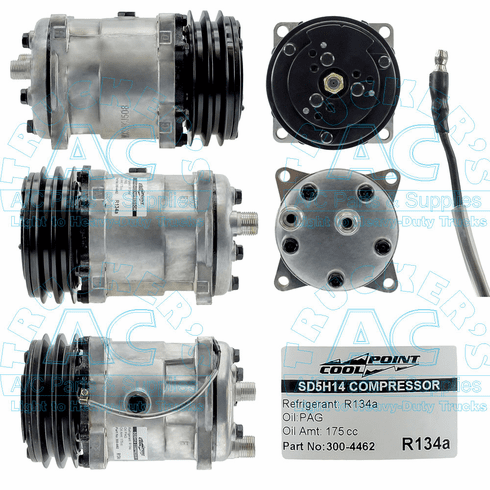

Sanden Style A/C Compressor - Aftermarket - Farm & Offroad
Make: Sanden Style
Manufacturer #: 6676
Application: Farm & Off Road Applications
Description: A/C Compressor, R134A
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 5 cyl
Comp. Displacement (ci): 8.4 cu.in.
Factory Oil Charge: 210cc Oil
Fitting Port Position: Horizontal
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: KG
Wire Type: 1 Wire Male Bullet
Replacement Clutch Assy.: 02-3064
Replacement Head Assy: 03-6540G
Model: SD5H14HD
Mount Type: Clutch has keyed shaft
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
Shaft Type: SD5 Keyed Shaft
Diode Protection: None
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
INTERCHANGE: AIRSOURCE #5730G
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
