Sanden Compressor # 4709 FORD - NEW HOLLAND

Sanden Compressor # 4709 FORD - NEW HOLLAND

Item# 03-3440
Availability: Usually ships the same business day.

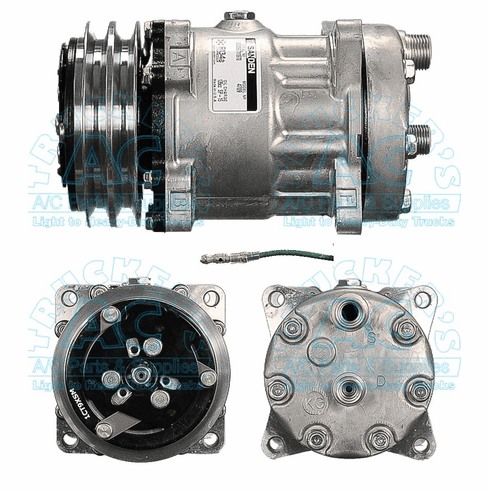

FORD - NEW HOLLAND, FW20,TW5/15/25/35,7710,7740, Sanden SD5H14 compressor w/5-1/4" 12v 2 gr clutch, oem# SFD-02-1795


Manufacturer #: 4709

Application: Multi Fit Applications

Description: SANDEN SD7H15 COMP W/2GR/HO

Additional Description: HT6 Replacement

Volts: 12V

Clutch Diameter: 125mm

No. of Grooves: 2 groove

Belt Type: Two 1/2'' Belts

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5

Factory Oil Charge: 135cc Oil

Fitting Port Position: Horizontal

Fitting Style: Male Insert O-Ring #8 & #10

Head Type: KG

Wire Type: 1 Wire Male Packard #12015791 W/ Diode

Replacement Clutch Assy.: 02-3063

Replacement Head Assy: 03-6540G

Model: SD7H15HD

Mounting Type: Ear 8 Long

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

O-Ring #1: 16-4208

O-Ring #2: 16-4210

Shaft Type: Long Key Shaft

Diode Protection: w/diode

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.

INTERCHANGE: 5412 22-59343-000 75R-81552 RD5-11331-0 4709 N83-304362 N83-304883
