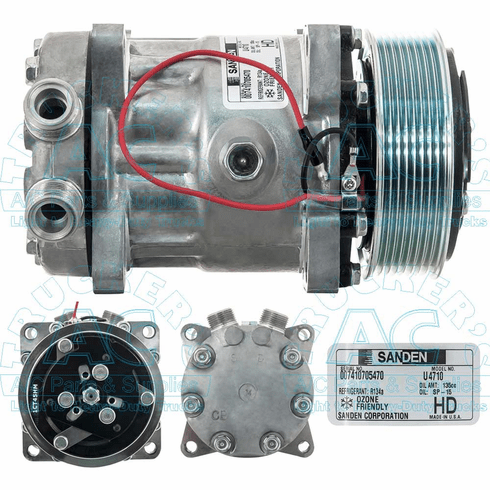

Sanden Universal Compressor # 4710
Specifications
Manufacturer #: 4710
Application: Multi Fit Applications
Description: SANDEN SD7H15 COMP.W/8GR/VT
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 135cc Oil
Fitting Port Position: Vertical
Fitting Style: Tube-O 1 x 14
Head Type: CB
Wire Type: 1 Wire Male Bullet
Replacement Clutch Assy.: 02-3468
Replacement Head Assy: NSS
Model: SD7H15HD
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4210
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5413 4710
