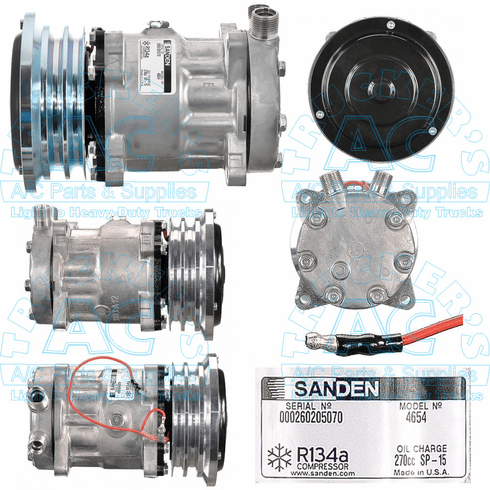

Sanden Compressor - Genuine OEM Grade Manufacturer #: 4654 - Farm & Off Road
Sanden Compressor - Genuine OEM Grade Manufacturer #: 4654 - Farm & Off Road
Sanden Compressor - Genuine OEM Grade Manufacturer #: 4654 - Farm & Off Road
Item#: 03-3470D
Availability: Usually ships the same business day
$271.90

Product Description
Make: Sanden

Manufacturer #: 4654

Application: Farm & Off Road Applications

Description: Sanden Compressor

Additional Description: Sealed HD style

Volts: 12V

Clutch Diameter: 132mm

No. of Grooves: 2 groove

Belt Type: Two 1/2'' Belts

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5 cu.in.

Factory Oil Charge: 270cc Oil

Fitting Port Position: Vertical

Fitting Style: Male Insert O-Ring #8 & #10

Head Type: JDA

Wire Type: 1 Wire Male Bullet

Replacement Clutch Assy.: 02-3477

Replacement Head Assy: 03-6533A

Model: SD7H15-SHD

Mounting Type: Ear 8 Long

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

Shaft Type: Long Key Shaft

Diode Protection: None

Truck Air Oring 1: 16-4208

Truck Air Oring 2: 16-4210

Truck Air Seal 1: 16-4208

Truck Air Seal 2: 16-4210



INTERCHANGE: AIRSOURCE 54654

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
