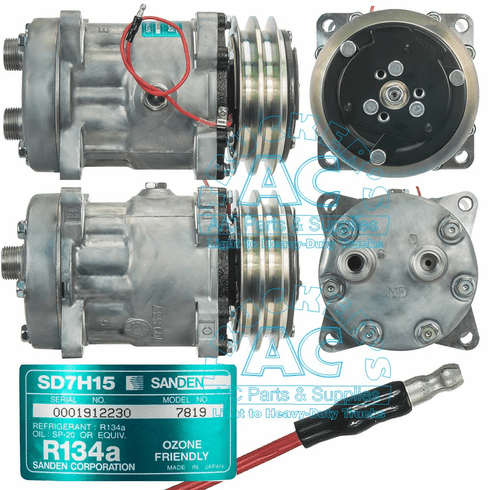

Sanden Universal Compressor # 7819
Specifications
Manufacturer #: 7819
Application: Multi Fit Applications
Description: A/C Compressor, R134a
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 150cc Oil
Fitting Port Position: Horizontal
Fitting Style: Tube-O 1 x 14
Head Type: MD
Wire Type: 1 Wire Male Bullet
Replacement Clutch Assy.: 02-3063
Replacement Head Assy: 03-6534
Model: SD7H15HD
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4210
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5702 N83-304042 N83-304049 N83-304922 525698 1401135 75R-8442 7819 512068 512074 512078 176353 4680 4706 512067 AC501-224A AC501224A
