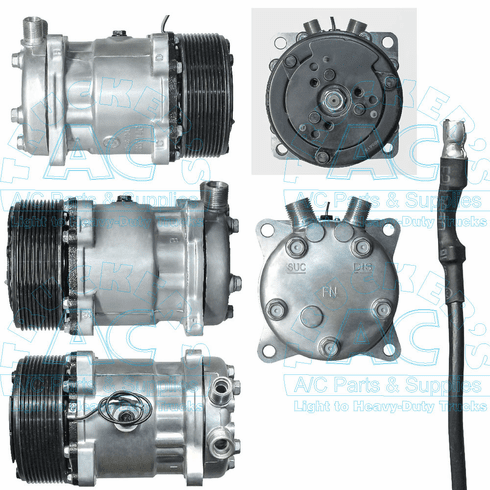

Sanden Style A/C Compressor  - Aftermarket - Multi-Fit
Zoom

Sanden Style A/C Compressor - Aftermarket - Multi-Fit

Item# 03-3488G
$193.36
Availability: Usually ships the same business day.

Product Description

Make: Sanden

Manufacturer #: 4508

Application: Multi Fit Applications

Description: A/C Compressor, R134a

Volts: 12V

Clutch Diameter: 125mm

No. of Grooves: 10 groove

Belt Type: Serpentine

No. Comp. Cylinders: 5 cyl

Comp. Displacement (ci): 8.4 cu.in.

Factory Oil Charge: 135cc Oil

Fitting Port Position: Vertical

Fitting Style: Male Insert O-Ring #8 & #10

Head Type: FL

Wire Type: 1 Wire Male Bullet

Replacement Clutch Assy.: 02-3476

Replacement Head Assy: 03-6543

Model: SD5H14

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW/CCW

Shaft Type: SD5 Keyed Shaft

Diode Protection: None

Truck Air Oring 1: 16-4208

Truck Air Oring 2: 16-4210

Truck Air Seal 1: 16-4208

Truck Air Seal 2: 16-4210



All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

INTERCHANGE: AIRSOURCE #5712G, ALLIANCE #N83-304682, FLEETRITE #ZGG19278, KYSOR #1401101 / 1410063, RED DOT #75R-83152, SANDEN #4508 / 6656

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
