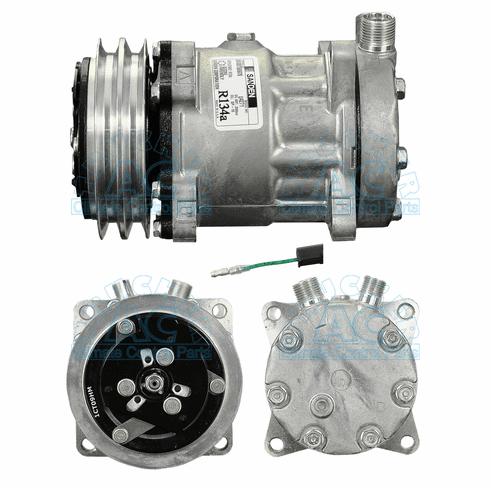

Sanden 4271 N83-304122
Sanden Compressor #4271
This compressor replaces the Sanden 4506
Specifications
Manufacturer #: 4271
Application: Farm & Off Road Applications
Description: SD7H15 COMP W/132MM CLUTCH
Volts: 24V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 200cc Oil
Fitting Port Position: Vertical
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: JD
Wire Type: 1 Wire Male Packard #12015791 W/ Diode
Replacement Clutch Assy.: 02-3485
Replacement Head Assy: 03-6533
Model: SD7H15HD
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
INTERCHANGE: 5752A 4271 N83304122 526047 LE1265 ZGG705175 1401100 1401336 75R-8384 RD5-7089-0 75R8384 RD570890 4506 4507 6627 6661 6665 7860 7866 7888 7972 8017 8042 8077 8126 8163 8239 Airsource 5752A
