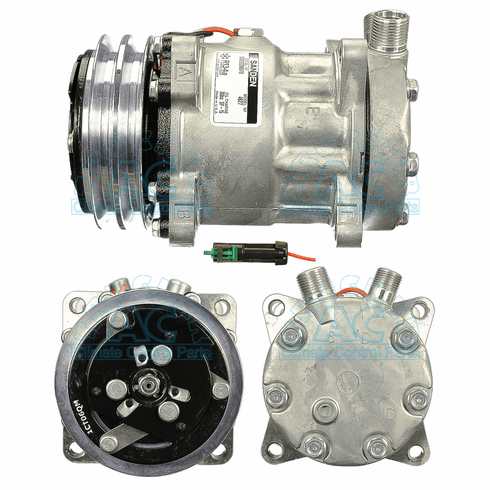

Sanden 4627 Kenworth LE1145

Sanden 4627 Kenworth LE1145

Item# 03-3490
Availability: Usually ships the same business day.

Kenworth All w/2 gr 125mm, Ear Mount (4627), LE1145

Peterbilt ALL MODELS w/2 gr 125mm, Ear Mount (4627), LE1145

Volvo GM w/2 gr. 125mm 4.9" (C3126, M11 eng.) w/oe# (4779), 20370291

w/2 gr. 125mm 4.9" (Cummins N14, M11) w/oe# (4627), 8164872


Manufacturer #: 4627

Application: Multi Fit Applications

Description: A/C Compressor, R134a

Volts: 12V

Clutch Diameter: 125mm

No. of Grooves: 2 groove

Belt Type: Two 1/2'' Belts

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5

Factory Oil Charge: 300cc Oil

Fitting Port Position: Vertical

Fitting Style: Male Insert O-Ring #8 & #10

Head Type: JD

Wire Type: 1 Wire Male Packard #12065171

Replacement Clutch Assy.: 02-3063

Replacement Head Assy: 03-6533

Model: SD7H15HD

Mounting Type: Ear 8 Long

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

O-Ring #1: 16-4208

O-Ring #2: 16-4210

Shaft Type: Long Key Shaft

Diode Protection: None

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.

INTERCHANGE: 5727 N83-304125 N83-304283 N83-304382 N83304125 N83304283 N83304382 525723 18-00093-00 180009300 LE1145 ZGG19296 1401108 1691745-C91 75R-8422 RD5-7120-0 RD571200 4627 3946616 61104-3202 611043202 8164872
