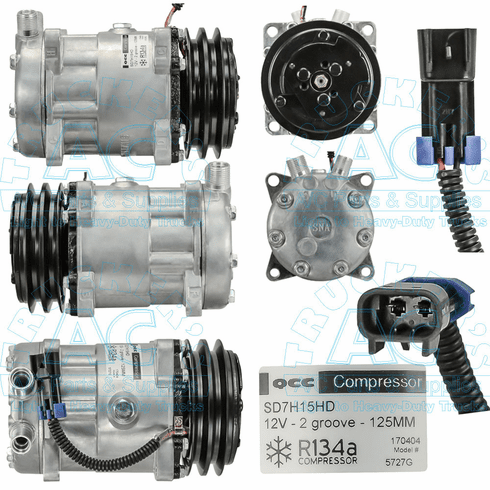

Sanden Style A/C Compressor - Aftermarket - Multi-Fit
Sanden Style A/C Compressor  - Aftermarket - Multi-Fit
Sanden Style A/C Compressor - Aftermarket - Multi-Fit
Item#: 03-3490G
Availability: Usually ships the same business day
$174.93

Product Description
Application: Multi Fit Applications

Description: A/C Compressor, R134a

Volts: 12V

Clutch Diameter: 125mm

No. of Grooves: 2 groove

Belt Type: Two 1/2'' Belts

No. Comp. Cylinders: 7 cyl

Factory Oil Charge: 300cc Oil

Fitting Port Position: Vertical

Fitting Style: Male Insert O-Ring #8 & #10

Head Type: JDA

Wire Type: 1 Wire Male Packard #12065171

Model: SD7H15HD

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

Shaft Type: Long Key Shaft

Diode Protection: None



All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

INTERCHANGE: AIRSOURCE #5727G, ALLIANCE #N83-304125 / N83-304382 / N83-304674, BERGSTROM #525723, CARRIER AC #18-00093-00, CLIMATECH #LE1145, FLEETRITE #ZGG19296, INTERNATIONAL NAVISTAR #1691745-C91, KYSOR #1401108, RED DOT #75R-8422 / RD5-11347-0 / RD5-7120-0, SANDEN #4627 / 4779 / 9515, VOLVO #20370291 / 3946616 / 61104-3202, WESTERN STAR #61104-3411

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
