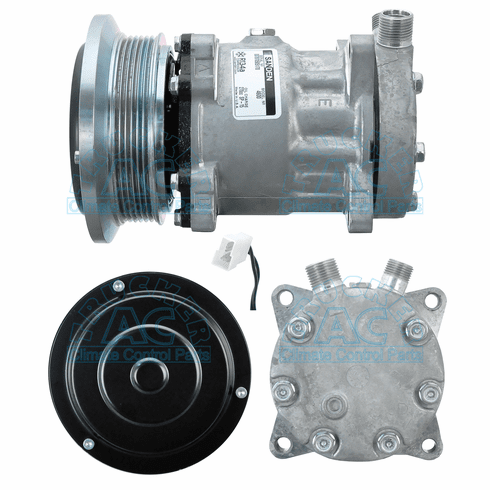

Sanden Compressor # 4600 Ford / Sterling OEM# 4600

Ford / Sterling, 1994 1993, w/Sanden SD7H15HD (R134a), OEM# 4600

Specifications

Manufacturer #: 4600

Application: Farm & Off Road Applications

Description: Sanden Compressor

Additional Description: Sealed HD style

Volts: 12V

Clutch Diameter: 125mm

No. of Grooves: 6 groove

Belt Type: Serpentine

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5 cu.in.

Factory Oil Charge: 270cc Oil

Fitting Port Position: Vertical

Fitting Style: Male Insert O-Ring #8 & #10

Head Type: JD

Wire Type: 2 Wire AMP #180908

Replacement Clutch Assy.: NSS

Replacement Head Assy: 03-6533

Model: SD7H15-SHD

Mounting Type: Ear 8 Long

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

O-Ring #1: 16-4208

O-Ring #2: 16-4210

Shaft Type: Long Key Shaft

Diode Protection: None

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.

INTERCHANGE: N83-304932 N83304932 4600 814556
