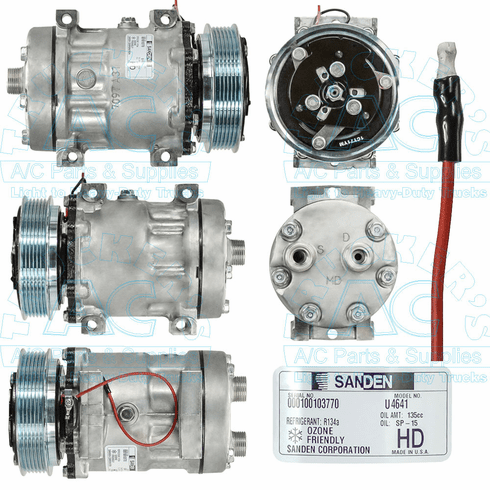

Sanden Compressor - Genuine OEM Grade #: 4641
Make: Sanden
Manufacturer #: 4641
Application: Multi Fit Applications
Description: A/C Compressor, R134a
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 6 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 240cc Oil
Fitting Port Position: Horizontal
Fitting Style: Tube-O 1 x 14
Head Type: MD
Wire Type: 1 Wire Male Bullet
Replacement Clutch Assy.: 02-3468 see note
Replacement Head Assy: 03-6534
Model: SD7H15HD
Mounting Type: Direct Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Notes: Can Use 8 groove clutch (5068)
Diode Protection: None
Truck Air Oring 1: 16-4210
Truck Air Seal 1: 16-4210
INTERCHANGE: AIRSOURCE 5741; ALLIANCE N83-304323; CATERPILLAR 232-9274; RED DOT 75R-84562; SANDEN 4641
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
