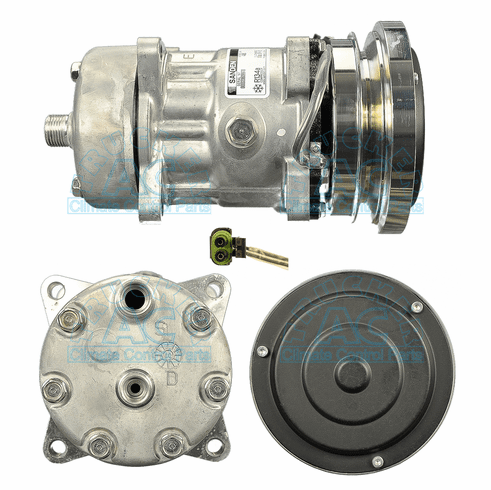

Sanden Compressor # 4661 4480 Farm & Off-Road
CATERPILLAR, Sanden, w/2 grv, 138mm, 12 volt (4661), OEM# SD4661
FORD - NEW HOLLAND, All, Sanden SD7H15SHD w/1 gr clutch (model 4661)
Specifications
Manufacturer #: 4480
Application: Farm & Off Road Applications
Description: Sanden 7H15SHD Comp 1gr 12v
Additional Description: Sealed HD style
Volts: 12V
Clutch Diameter: 138.5mm
No. of Grooves: 1 groove
Belt Type: 1/2'' Belt
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: KC
Wire Type: 2 Wire Male Packard #12015792
Replacement Clutch Assy.: NSS
Replacement Head Assy: 03-6540C
Model: SD7H15-SHD
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5314 1149484 1149487 114-9484 114-9487 75R-81492 RD5-9001-1 4480 4661
