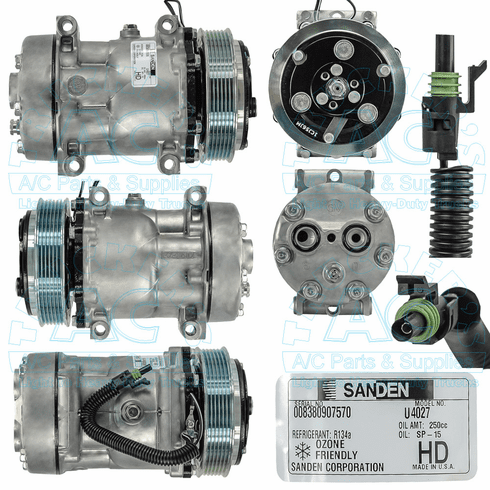

Sanden SD7H15-HD Manufacturer #: 4027 - Autocar Applications
Make: Sanden
Manufacturer #: 4027
Application: Autocar Applications
Description: SANDEN SD7H15-HD COMPRESSOR
Additional Description: Super HD style
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 6 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 250cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Universal O-ring FLX-7 Pad
Head Type: GV
Wire Type: 1 Wire Male Packard #12015791 W/ Diode
Replacement Clutch Assy.: 02-0606S
Replacement Head Assy: 03-6554
Model: SD7H15HD
Mounting Type: Direct Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Truck Air Oring 1: 16-4224
Truck Air Seal 1: 16-4224
AUTOCAR, 2007, REFUSE TRUCK
INTERCHANGE: AIRSOURCE 54027; AUTOCAR A6110059-001; BERGSTROM 1000141219; KYSOR 1401411; SANDEN 4027
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
